Hot-dip galvanized · round · square · rectangular

Galvanized steel pipe, cut, threaded and packed the way your site needs it

Round pipe from DN15 to DN200 to EN 10255 or ASTM A53, square and rectangular galvanized tube, threaded and socketed lengths, and matching fittings — supplied in container or project quantities with the coating mass stated on the mill certificate.

1/2″ DN15 3/4″ DN20 1″ DN25 2″ DN50 4″ DN100 6″ DN150 8″ DN200 Square & rectangular
Send your size list → WhatsApp us
Bundles of hot-dip galvanized steel pipe with protective end caps
24h
Price within 24 hours
Send diameter, wall thickness, length and quantity
ZN
Zinc coatingHot-dip or pre-galvanized; coating mass stated on the MTC
TH
ThreadsISO 7/1 or NPT, cut and gauged; couplings and caps fitted
6M
LengthsStandard 6 m, or cut to your length with re-marked ends
DOC
DocumentsMill certificate, packing list, invoice, B/L, certificate of origin
Product range

What we supply

Six product lines cover most galvanized pipe enquiries. Tell us the size and the application, and we will confirm which line fits — and what it costs.

Hot-dip galvanized round steel pipe with end capsBest seller

Hot-dip galvanized round pipe

DN15 – DN200 · EN 10255 / ASTM A53
  • Uniform zinc layer inside and outside
  • Light, medium and heavy wall classes
  • Plain, threaded or grooved ends
Get price

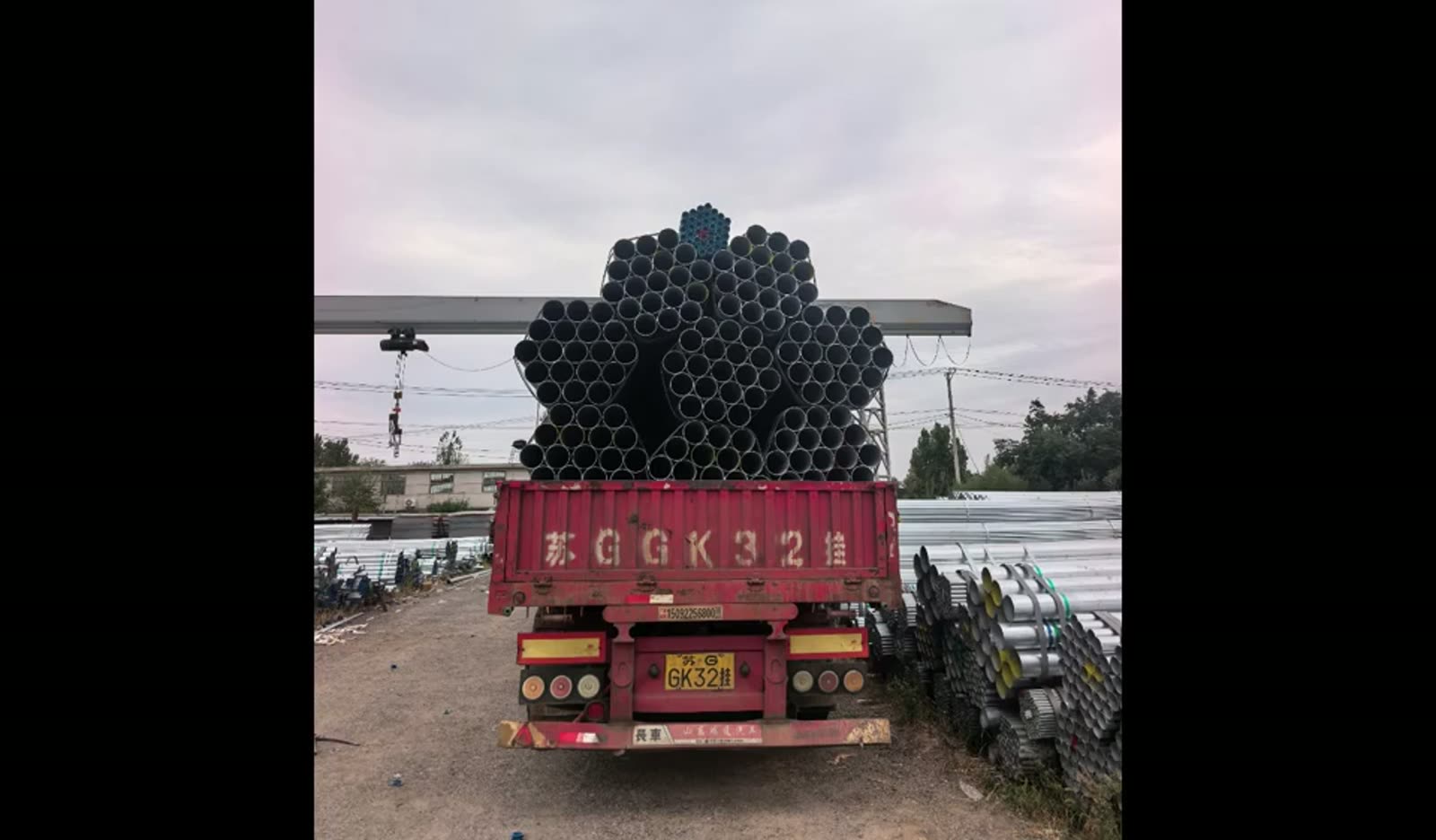

Galvanized pipe bundles loaded on a truck

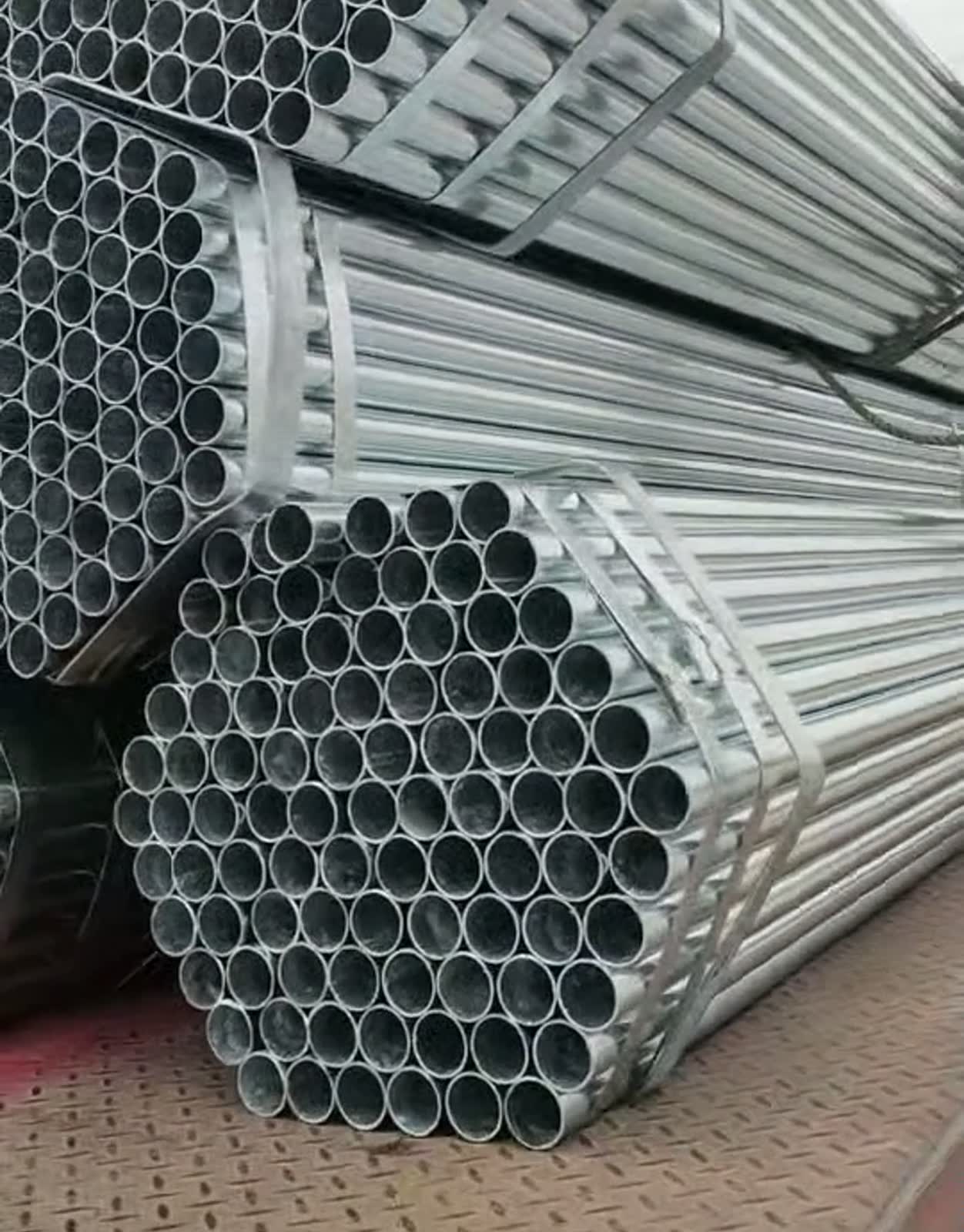

Pre-galvanized round pipe

DN15 – DN150 · in-line zinc coated coil
  • Lower cost for dry, indoor use
  • Smooth surface, good for painting
  • Available in light wall for framing
Get price

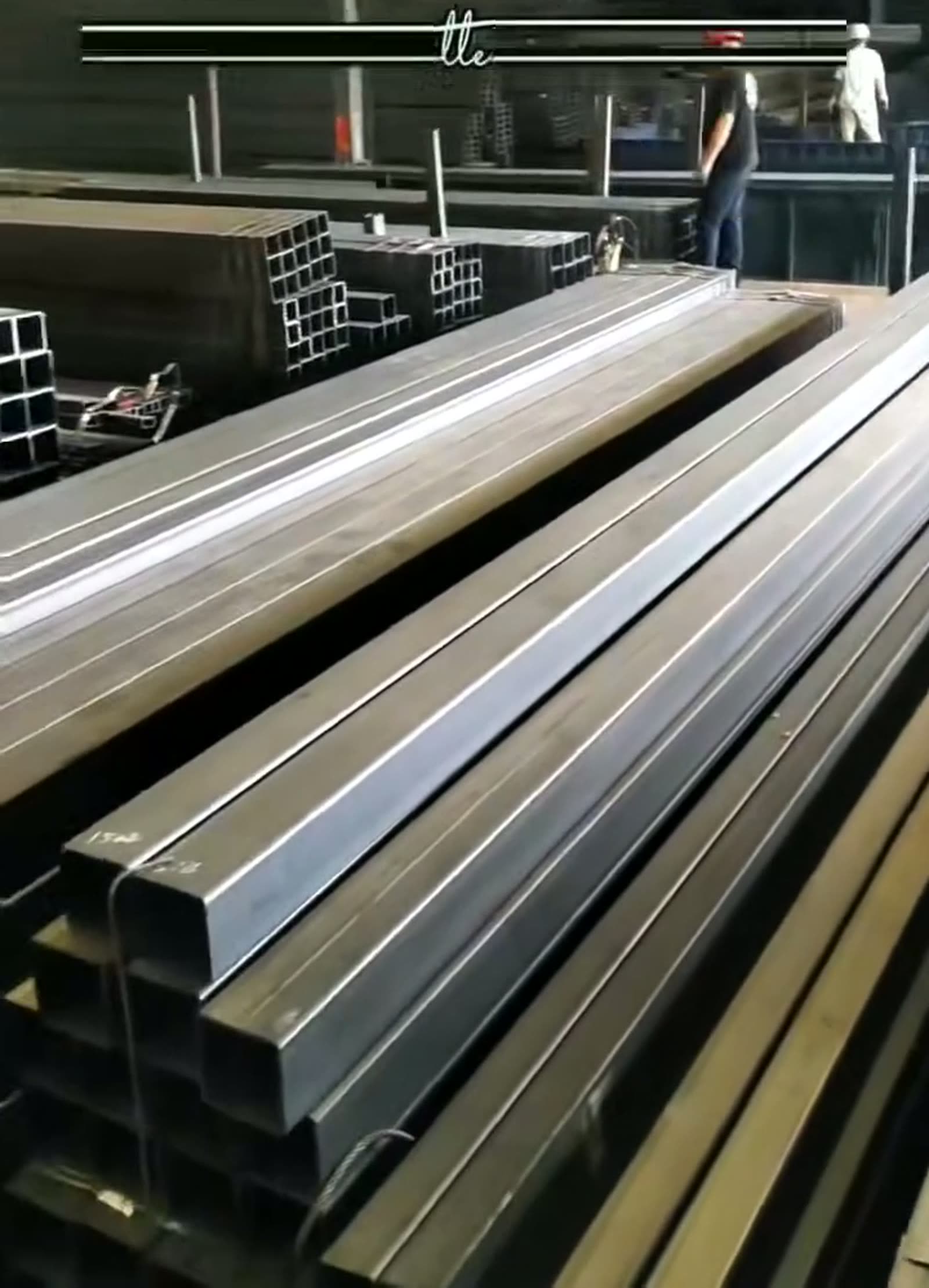

Galvanized square and rectangular steel tubes in storage

Galvanized square & rectangular tube

20×20 – 200×200 mm · EN 10219 / ASTM A500
  • For frames, gates, greenhouses and structures
  • Sharp or rounded corner sections
  • Cut to length on request
Get price

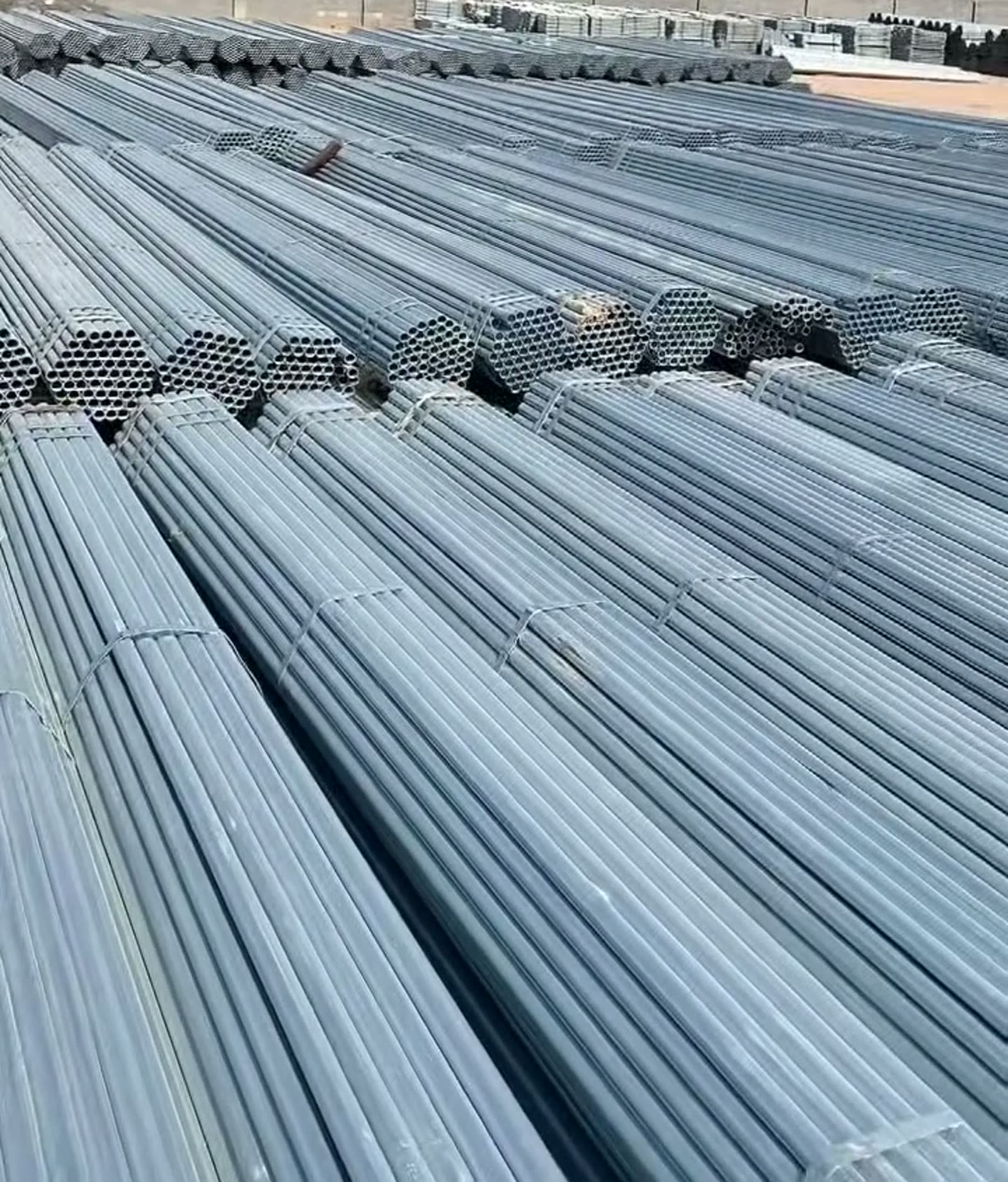

Threaded galvanized pipes stacked in the yard

Threaded & socketed pipe

DN15 – DN100 · ISO 7/1 or NPT
  • Threads cut and gauged, coupling fitted
  • Plastic caps protect the threads in transit
  • Ready for plumbing installation on site
Get price

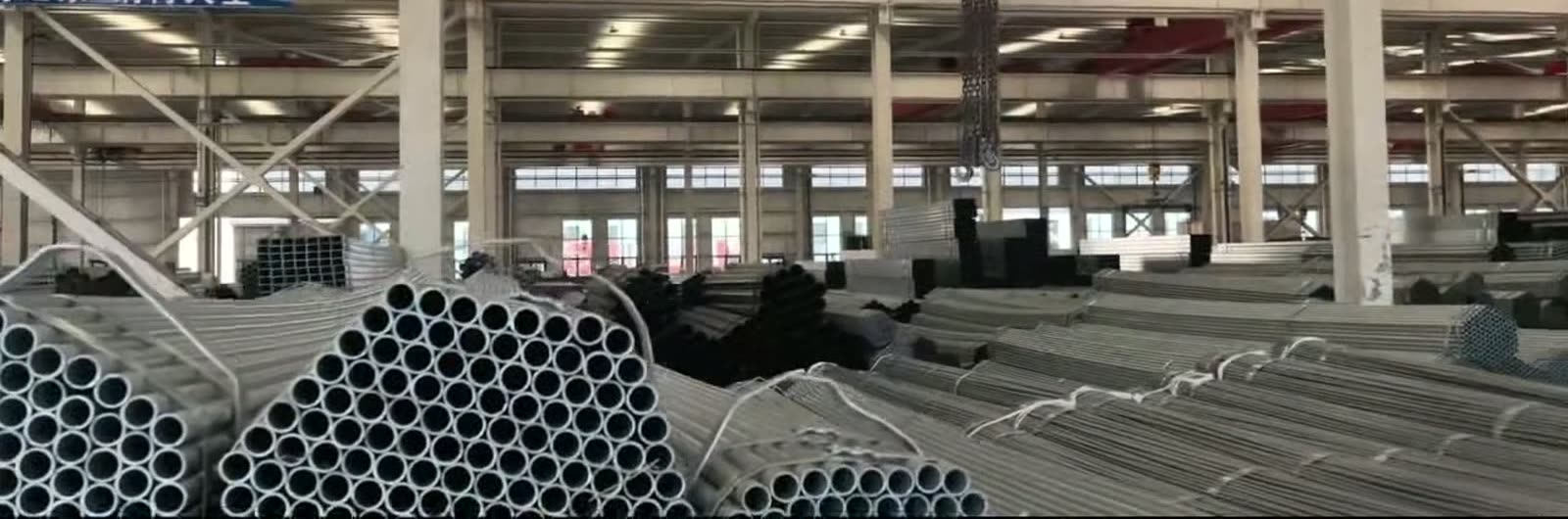

Galvanized pipe bundles inside a warehouse

Galvanized fittings

Elbows · tees · couplings · nipples · caps
  • Malleable iron and steel fittings
  • Matched to the pipe thread and size
  • Ordered with the pipe in the same container
Get price

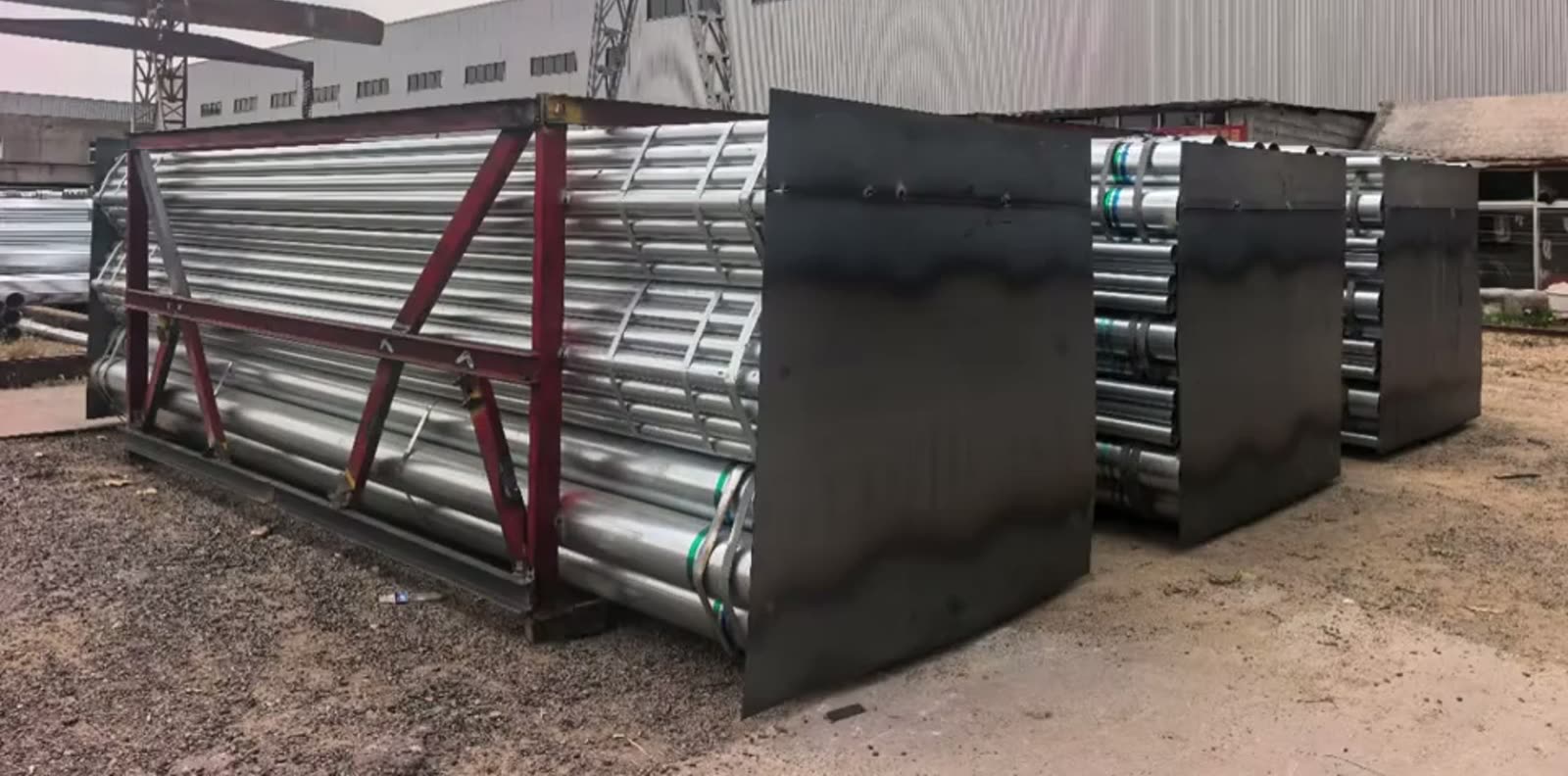

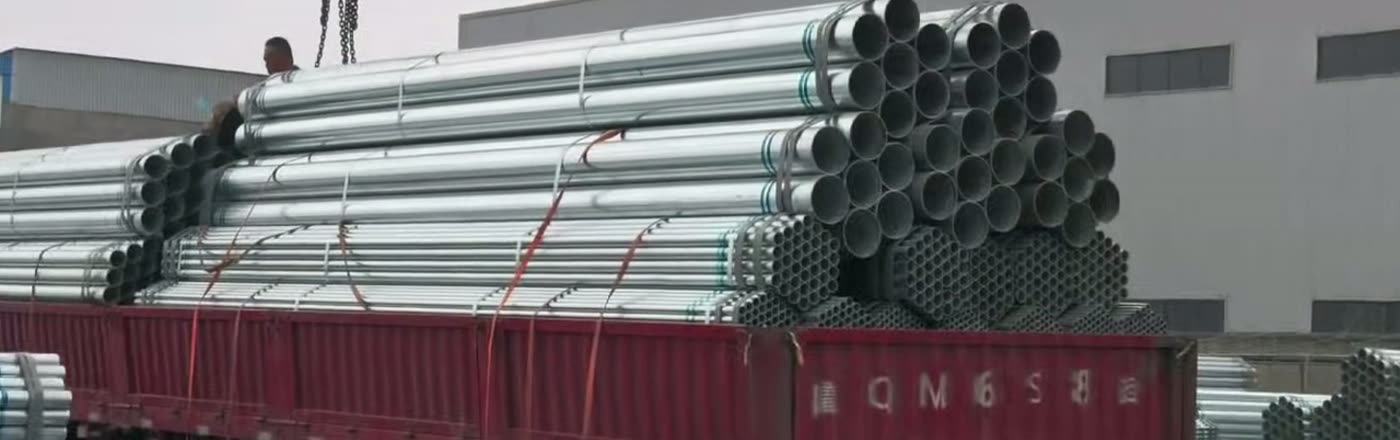

Galvanized pipe bundles ready for loading

Scaffolding & structural pipe

48.3 mm and other scaffold sizes
  • For scaffolding systems and guard rails
  • Cut lengths and drilled holes to order
  • Used with couplers, boards and frames
Get price
Sizes

DN15 – DN200 size reference

Outside diameters below are standard and do not change with wall thickness. Wall thickness and zinc coating are confirmed against your own specification before production — send the standard you buy to and we quote to that.

Nominal boreInchOutside diameter (mm)Wall thicknessStandard length
DN151/2″21.3Light · Medium · Heavy
to EN 10255, or Schedule 10 / 40 / 80 to ASTM A53 — quoted to your requirement		6 m standard
cut to order
DN203/4″26.9
DN251″33.7
DN321¼″42.4
DN401½″48.3
DN502″60.3
DN652½″76.1
DN803″88.9
DN1004″114.3
DN1255″139.7
DN1506″168.3
DN2008″219.1
Square and rectangular tube: 20×20 mm up to 200×200 mm, wall 1.2 – 8 mm, in 6 m lengths. Send the section list and we will quote it with the pipe.
Applications

Where galvanized pipe is used

If your project is one of these, tell us which — it decides the wall class and the zinc coating we recommend.

WA

Water supply & plumbing

Medium and heavy wall pipe, threaded with couplings, for building water lines and risers.

SC

Construction & scaffolding

48.3 mm and other scaffold sizes for frames, guard rails and access platforms.

AG

Greenhouse & agriculture

Light wall round and square tube for greenhouse frames, irrigation lines and livestock structures.

FE

Fencing & gates

Square and rectangular tube for fence panels and gate frames, with a coating that tolerates weather.

HV

HVAC & air ducts

Round pipe for ducting runs and supports, cut to length for fabrication in your workshop.

FP

Fire protection & structure

Pipe for fire lines and structural framing where a zinc coating is specified.

How it works

From your size list to a loaded container

Send the list

Diameter, wall thickness, length and quantity — a photo of a handwritten list is fine. Add the standard you buy to if you have it.

We confirm and quote

You get the price, the zinc coating and wall thickness we will supply, the lead time and the loading port — normally within 24 hours.

Production, photos, loading

Goods are bundled, capped and marked; you receive photographs of the bundles and the container loading before the vessel sails.

Packing & loading

Bundled, capped and photographed

Every shipment is photographed from the bundle to the container, so you know exactly what left the yard.

Galvanized pipe bundles stacked in the yard
Bundles strapped by size

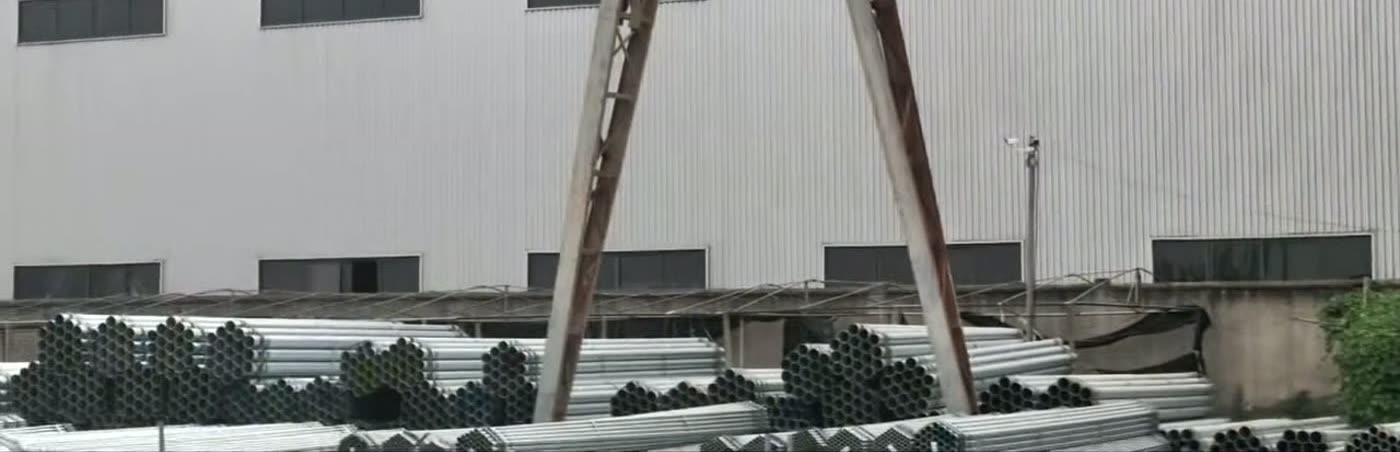

Hot-dip galvanized pipe bundles stacked at the factory
Stock ready at the yard

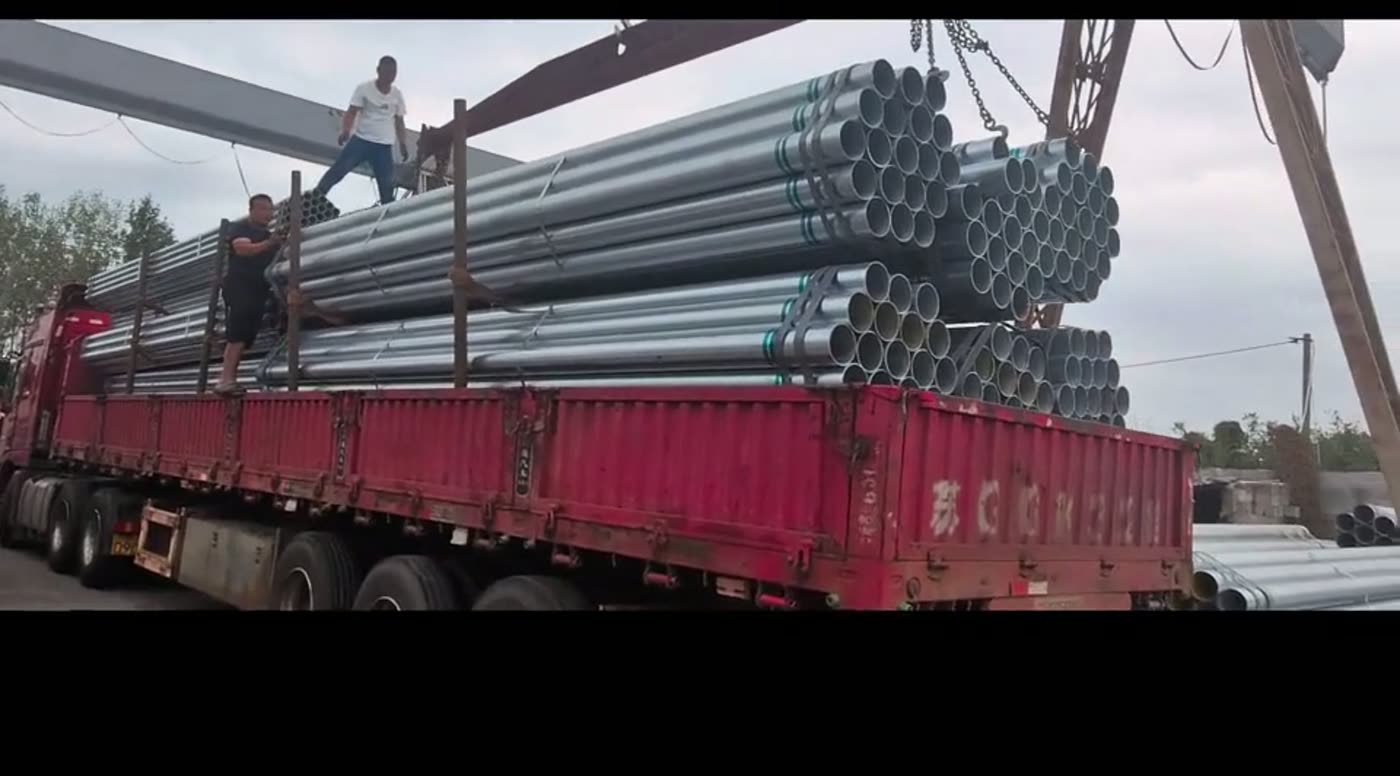

Galvanized pipes on a truck leaving the yard
Loading record for each order

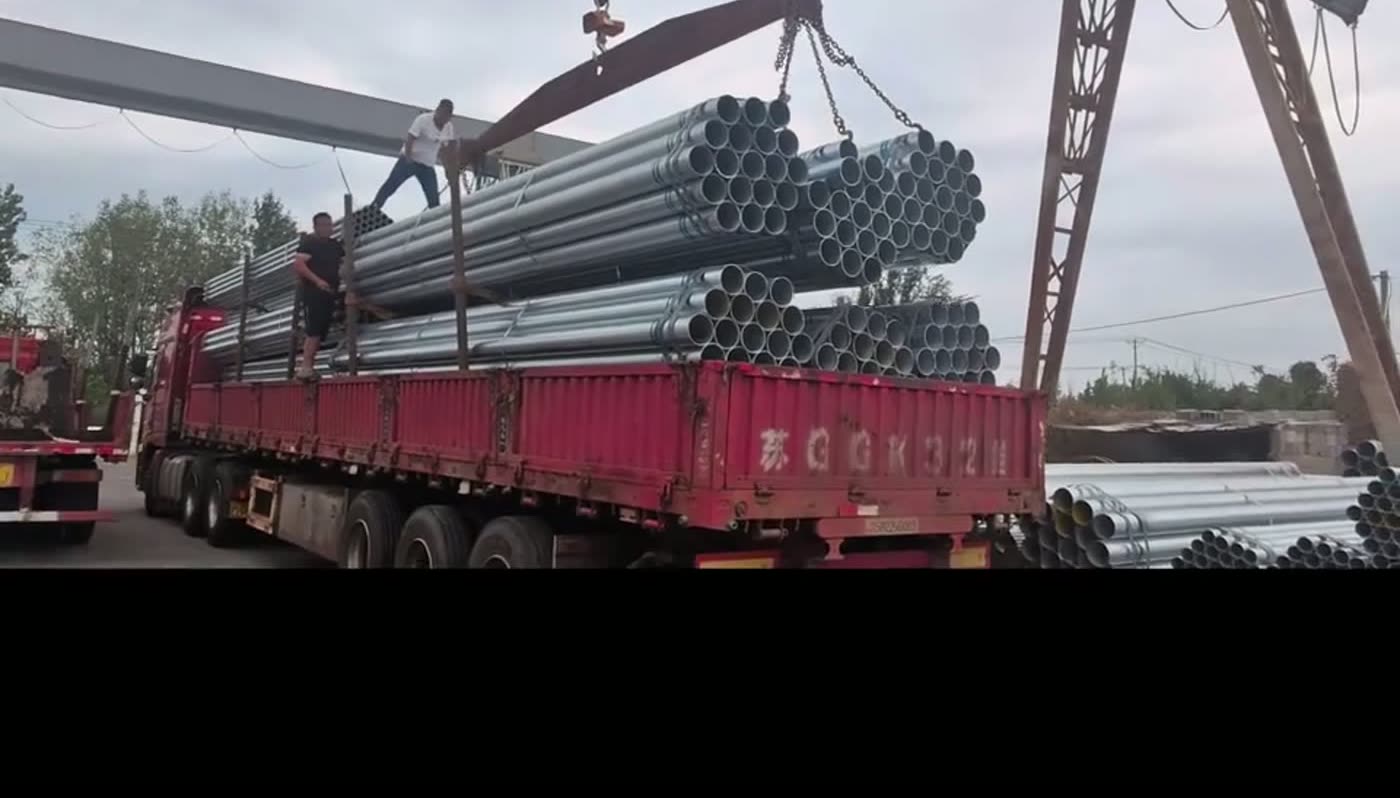

Galvanized pipe bundles lifted onto the truck for loading
Containers loaded under photo record

Terms

FOB, CFR and CIF from Tianjin or Qingdao. Delivered terms quoted when your project needs them.

Marking

Size, wall thickness and heat number marked on the bundle tag and stencilled on the pipe where required.

Documents

Mill certificate stating the zinc coating, packing list, invoice, bill of lading and certificate of origin.

Buyer questions

FAQ

What do you need to give me a price?

Four points: diameter (or DN / inch size), wall thickness, length, and quantity. If you do not know the wall thickness, tell us the application — water line, scaffold, greenhouse frame — and we will recommend it.

Is the pipe hot-dip galvanized or pre-galvanized?

Both are available. Hot-dip galvanized pipe has a heavier coating and is specified for outdoor and wet service; pre-galvanized pipe is made from zinc-coated coil and suits dry, indoor work at a lower cost. Tell us the application and we will quote the right one.

Can the ends be threaded?

Yes. Threads are cut to ISO 7/1 or NPT as you specify, gauged before packing, and protected with plastic caps. Couplings can be fitted to one end of each length.

What is the minimum order?

Mixed container loads are normal — pipe plus fittings. Trial quantities are accepted so you can check the thread, the coating and the packing before a project order.

How is the coating verified?

The zinc coating mass is stated on the mill certificate, and coating thickness can be checked with a magnetic gauge by your inspector or ours before loading. Photographs of the test are provided on request.

Do you supply fittings with the pipe?

Yes — elbows, tees, couplings, nipples and caps in matching galvanized finish, packed inside the same container so nothing is missing on site.

Contact

Send your size list — price within 24 hours

Write the sizes in the message box, or send a photo of your list on WhatsApp. Both reach the same desk.

Reach us directly

WA
WhatsApp +86 183 1062 6770
Send the size list as a photo — faster than typing it.
CO
HEBEI HONGFENG TRADE CO.,LTD
Hebei Province, China
HR
08:30 – 22:00 Beijing time (GMT+8)
Messages received overnight are answered the next morning.

Buying for a project?

Send the bill of materials and we will quote it line by line — pipe, tube and fittings together — so you can compare one price instead of five.
